新的短信服务集成到IDP中¶
最后更新：2021-12-01
1. IDP中已经集成的短信服务¶
截止当前版本，IDP中已经集成的短信服务有：
中国联通
中国移动
阿里短信平台
253云通讯平台(新版)
253云通讯平台(旧版)

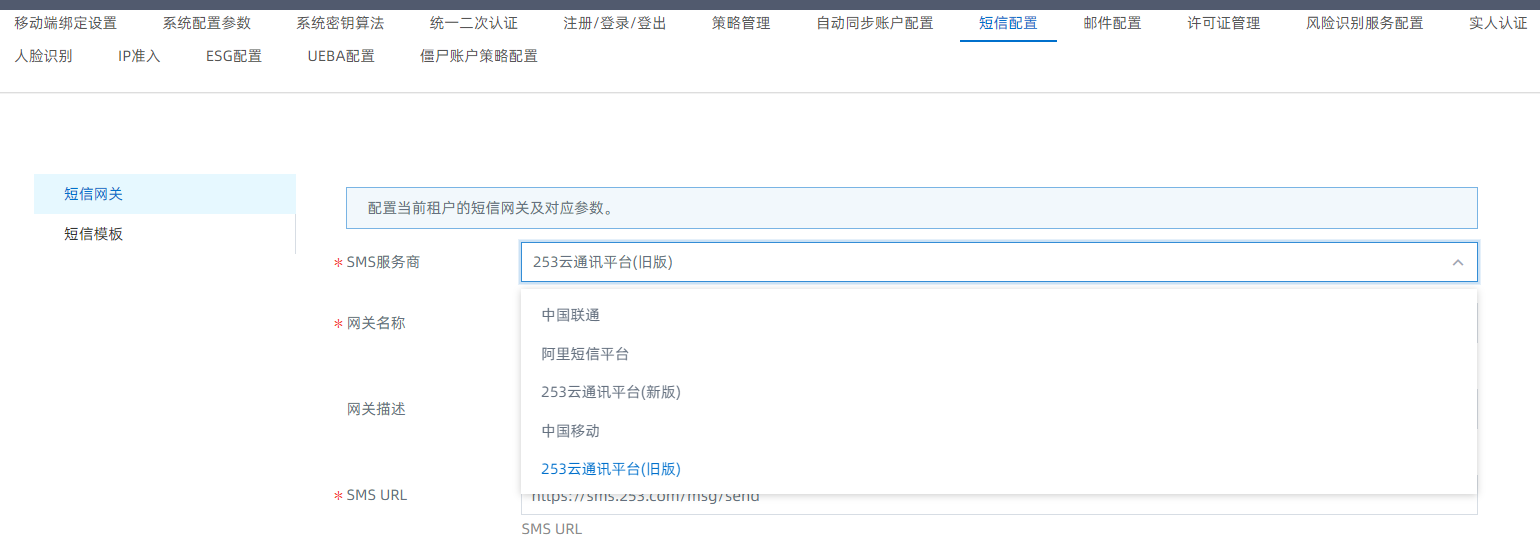

推荐项目交付中使用已有的短信服务；若已有的不满足，才需要集成新的短信服务。集成后将会在设置的短信网关中增加你的短信网关。
2. 开始集成¶
2.1. 下载最新短信网关 Demo 工程源码¶
运行命令 git clone https://github.com/aliyun-idaas/notify-sms-engine-demo.git

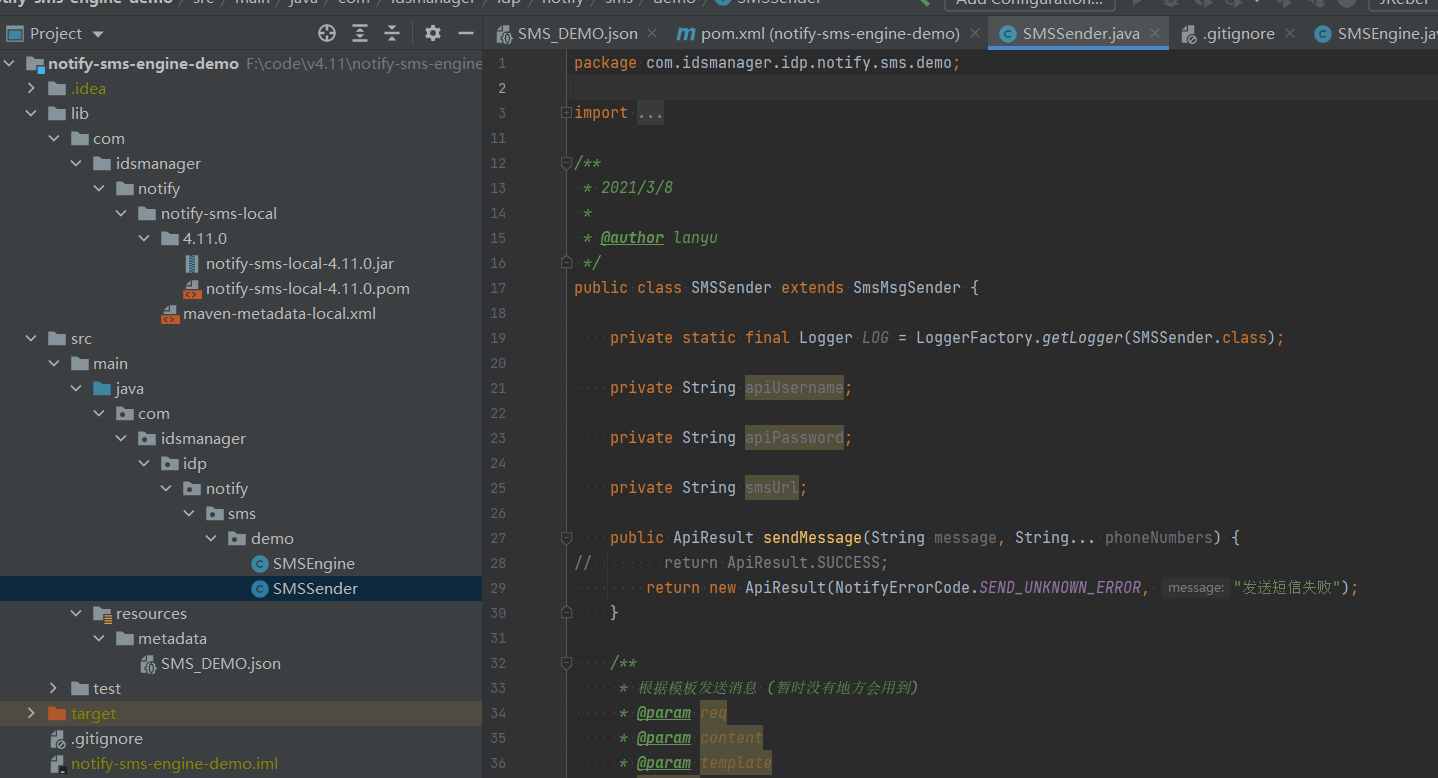

2.2. 使用 IDEA 打开 Demo 工程可查看 Demo 代码¶
2.3. 工程结构¶
工程使用 maven 进行管理，总体结构与 maven 标准项目相同，需要注意的是增加了一个 lib 目录，里面存放私有库 jar 包。
2.4. 代码开发¶
2.4.1. 项目名称¶
工程下载后名称为 notify-sms-engine-demo，复制代码目录为 notify-sms-engine-xxx，xxx为具体网关名，根据对接的短信网关真实名称确定，如 notify-sms-engine-aliyun、notify-sms-engine-cmcc、notify-sms-engine-253 等，我这里以对接 253 短信网关为例。

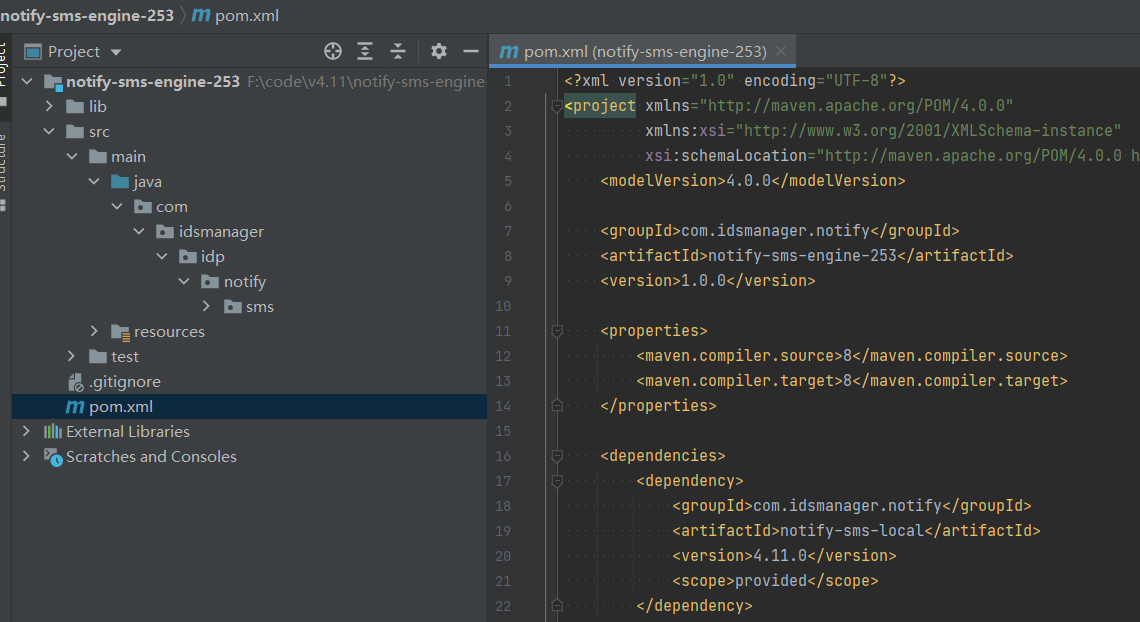

打开目录中 pom.xml，修改 artifactId 的值为你的目录名。

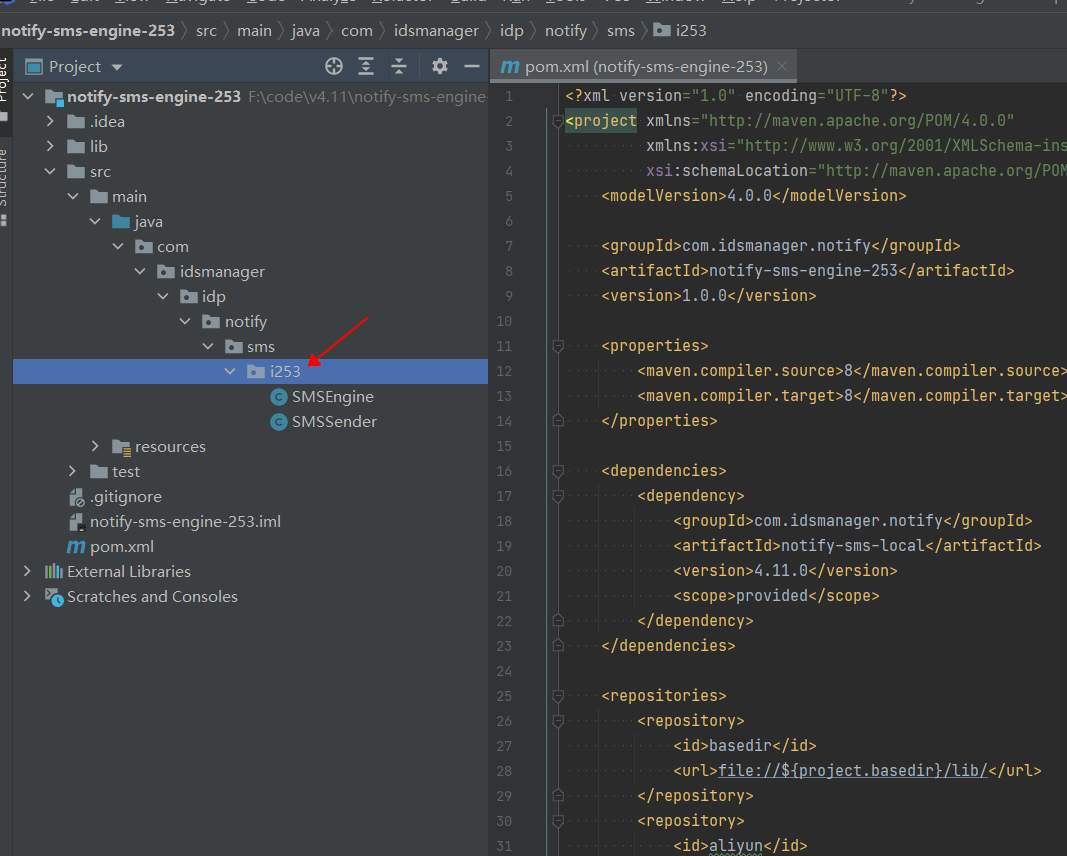

图2 修改项目名
2.4.2. 包名¶
使用 IDEA 打开改好项目名的项目，修改包名中 demo 为新的包名，如 aliyun、cmcc、i253 等。
图3 修改包名
2.4.3. Metadata 信息¶
主要需要修改 MINOR_TYPE、网关显示名称。
SMSEngine 类中 MINOR_TYPE 需要修改为 SMS_XXX 格式，如 SMS_ALIYUN、SMS_253，要求全大写，根据对接的网关名称确定。修改后修改 src/main/resources/metadata 中 SMS_DEMO.json 为 {MINOR_TYPE}.json，如 SMS_253.json。
网关显示名称修改为该短信网关真实的网关名称，如阿里短信平台、中国移动、中国联通、253等，修改 SMSEngine 类中 name 函数的返回值，返回真实网关名称即可。

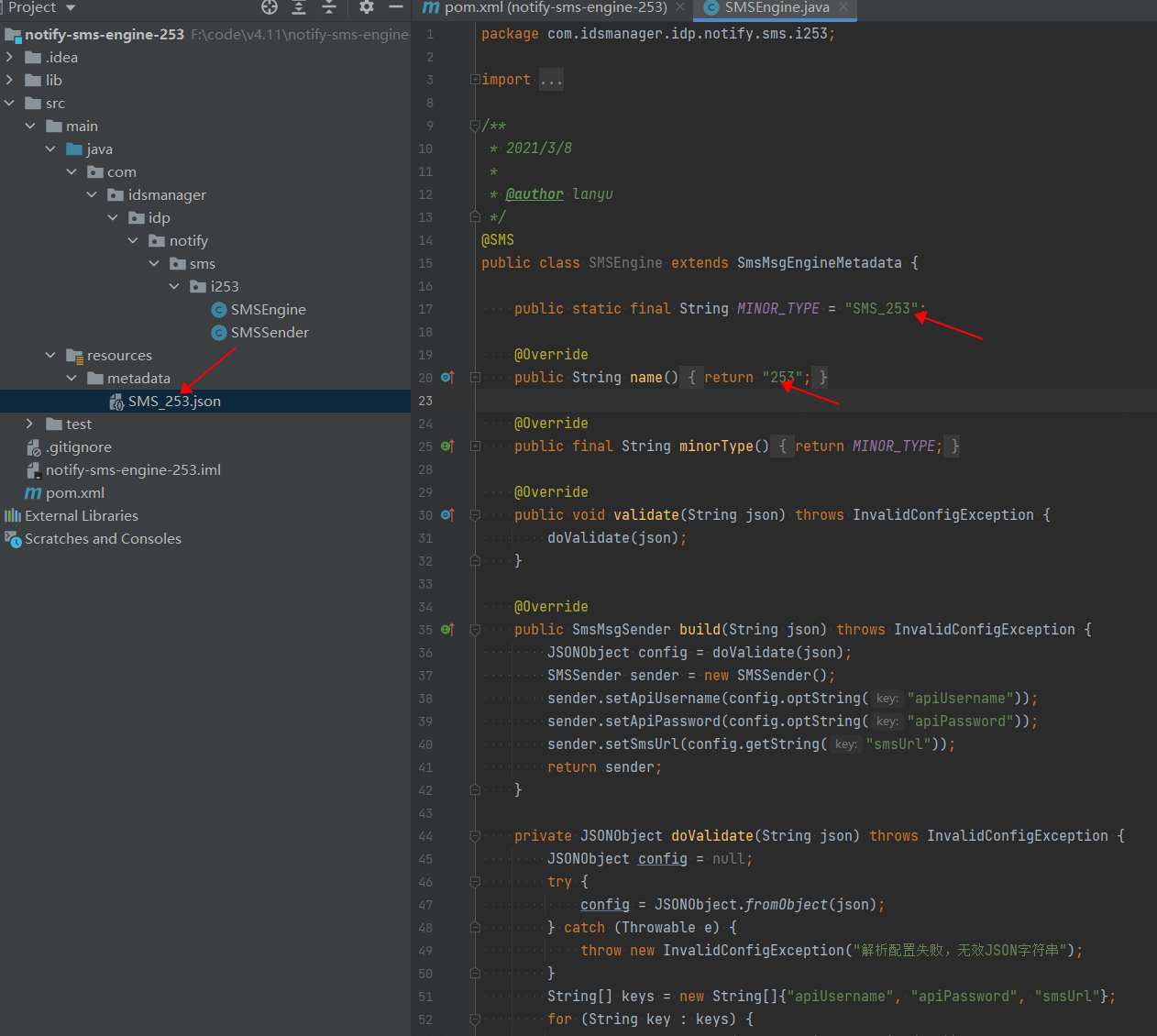

图4 修改 Metadata
2.4.4. 需要用户填写的参数信息¶
先确定需要对接的短信网关中需要传递的参数有哪些，其中又有哪些参数是固定的，哪些是需要用户填写的。如根据 253 短信网关接口文档（https://zz.253.com/api_doc/guo-nei-duan-xin/dan-fa-qun-fa-jie-kou.html）可得知，变量有：1、接口地址，该地址应由用户填写；2、account，用户填写；3、password，用户填写；4、msg，短信内容；5、phone，手机号。实际调试后得知短信内容中需要有固定标题，因此这里可定义为一个由用户填写的变量。需要用户填写的有4个值，分别为：接口地址、account、password、title。
修改 SMS_253.json，前端会按照该 json 信息渲染界面。

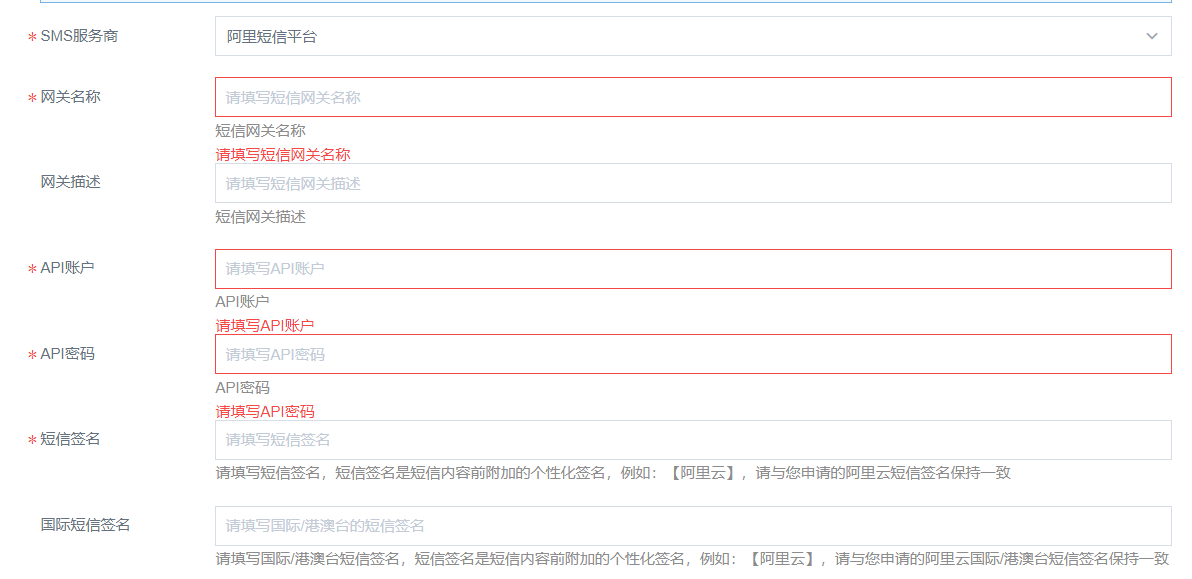

图5 添加短信网关前端界面
按照下列 json 格式示例添加描述信息可增加一行输入框到前端界面中。
{
"key": "smsUrl",
"name": {
"zh": "SMS URL",
"en": "SMS URL"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写SMS URL",
"en": "Please input SMS Gateway URL"
},
"description": {
"zh": "SMS URL",
"en": "SMS URL"
},
"rules": {
"required": true,
"message": {
"zh": "请填写SMS URL",
"en": "Please input SMS Gateway URL"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
}
需要修改 key、name.zh、name.en、placeholder.zh、placeholder.en、description.zh、description.en、rules.required、rules.message.zh、rules.message.en、type 的值，分别为，后端获取参数用的唯一标识（这个标识名字可以定义任意值，前后端一致即可）、中文名称、英文名称、中文占位提示信息、英文占位提示信息、中文描述、英文描述、是否必填、未填写时中文提示消息、未填写时英文提示消息、输入框类型（input为文本、password为密码）。我们的前端渲染 json 可定义单行输入框、多行文本框、下拉选项框、单选按钮、复选按钮等（见文末示例），需要了解更多的参数信息，可查看 IDaaS插件前端集成文档 或联系 IDaaS 前端团队同学。
修改好的 SMS_253.json 内容为
{
"formData": [
{
"key": "name",
"name": {
"zh": "网关名称",
"en": "Gateway Name"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写短信网关名称",
"en": "Please input SMS Gateway Name"
},
"description": {
"zh": "短信网关名称",
"en": "SMS Gateway Name"
},
"rules": {
"required": true,
"message": {
"zh": "请填写短信网关名称",
"en": "Please input SMS Gateway name"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "smsUrl",
"name": {
"zh": "SMS URL",
"en": "SMS URL"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写SMS URL",
"en": "Please input SMS Gateway URL"
},
"description": {
"zh": "SMS URL",
"en": "SMS URL"
},
"rules": {
"required": true,
"message": {
"zh": "请填写SMS URL",
"en": "Please input SMS Gateway URL"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "account",
"name": {
"zh": "253 账户",
"en": "253 account"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写 253 账户",
"en": "Please input SMS Gateway 253 account"
},
"description": {
"zh": "253 账户",
"en": "253 account"
},
"rules": {
"required": true,
"message": {
"zh": "请填写 253 账户",
"en": "Please input SMS Gateway 253 account"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "password",
"name": {
"zh": "253 密码",
"en": "253 password"
},
"type": "password",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写 253 密码",
"en": "Please input SMS Gateway 253 password"
},
"description": {
"zh": "253 密码",
"en": "253 password"
},
"rules": {
"required": true,
"message": {
"zh": "请填写 253 密码",
"en": "Please input SMS Gateway 253 password"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "title",
"name": {
"zh": "标题",
"en": "title"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写标题",
"en": "Please input SMS Gateway title"
},
"description": {
"zh": "标题",
"en": "title"
},
"rules": {
"required": true,
"message": {
"zh": "请填写标题",
"en": "Please input SMS Gateway title"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "description",
"name": {
"zh": "网关描述",
"en": "Gateway description"
},
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "请填写短信网关描述",
"en": "Please input SMS Gateway Name"
},
"description": {
"zh": "短信网关描述",
"en": "SMS Gateway description"
},
"rules": {
"required": false,
"message": {
"zh": "请填写短信网关描述",
"en": "Please input SMS Gateway description"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
},
{
"key": "enabled",
"name": {
"zh": "启用短信网关",
"en": "Enable SMS Gateway"
},
"type": "switch",
"readonly": false,
"disabled": false,
"placeholder": {
"zh": "启用后可以对短信模板进行内容自定义",
"en": "After enabling, you can customize the content of the SMS template"
},
"description": {
"zh": "启用短信网关",
"en": "Enable SMS Gateway"
},
"rules": {
"required": false,
"message": {
"zh": "启用后可以对短信模板进行内容自定义",
"en": "After enabling, you can customize the content of the SMS template"
},
"trigger": "blur"
},
"show": true,
"send": true,
"number": null
}
]
}
里面的网关名称（上面 json 中key为name）、网关描述（上面 json 中key为description）、启用短信网关（上面 json 中key为enabled）为固定需要的值，请勿修改。
在 SMSSender 类中添加表单中变量对应的字段，并生成对应的setter，如上面 json 中 key 为 smsUrl，代表253短信网关发送地址，则在下图中增加了 smsUrl 这个字段，并生成了对应的 setter 方法。

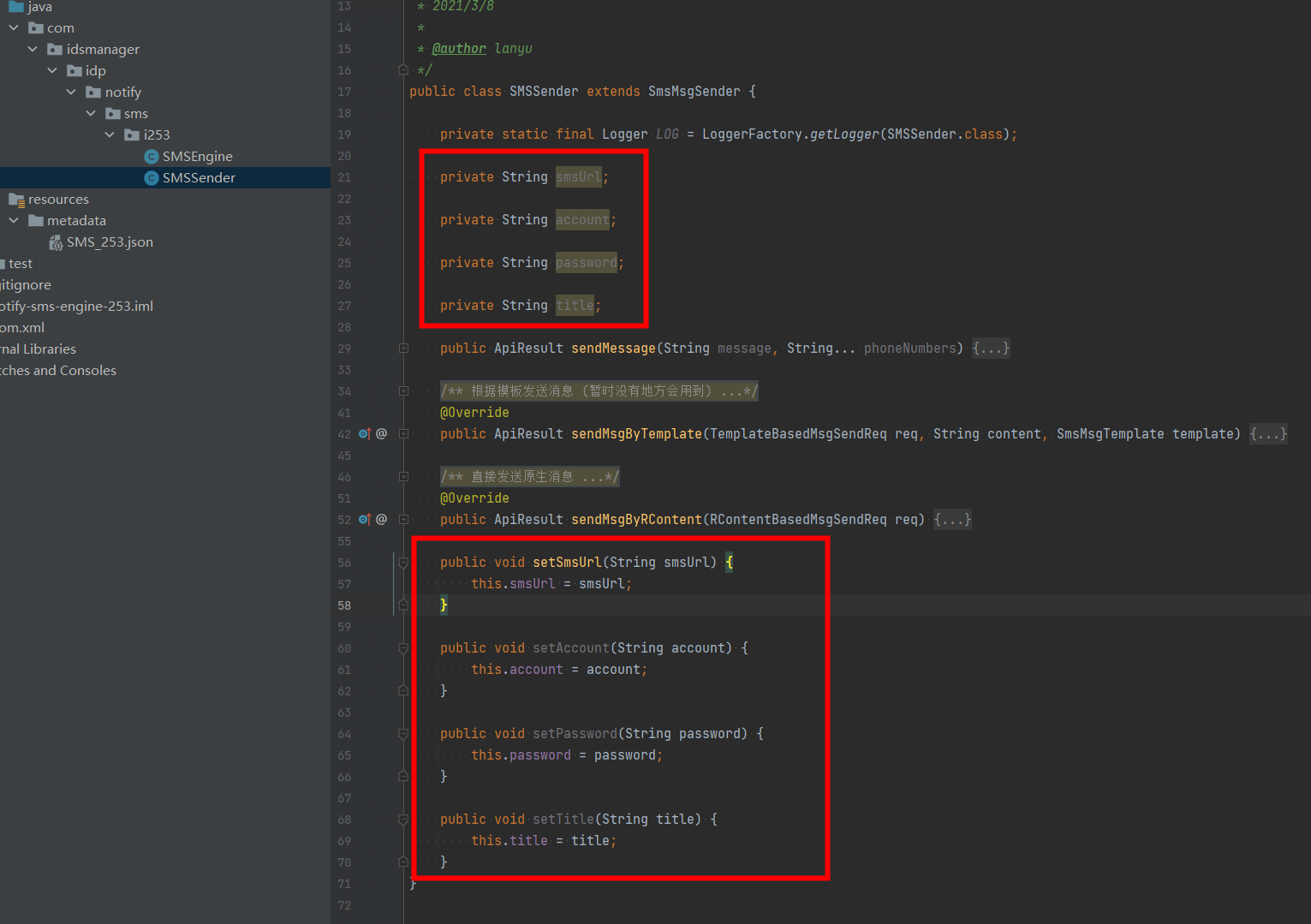

图6 SMSSender 类中添加字段
修改 SMSEngine 类中对应校验方法和生成Sender方法中的字段名，需要注意 config.optString(“account”) 中 key 需要和 SMS_253.json 中的 key 一致，另外需要注意传过来的数据只有用户填写的数据，不会传默认值，如开关类型，默认关闭状态，用户没进行过修改，则不会传该参数，需要自己在插件中处理默认值。

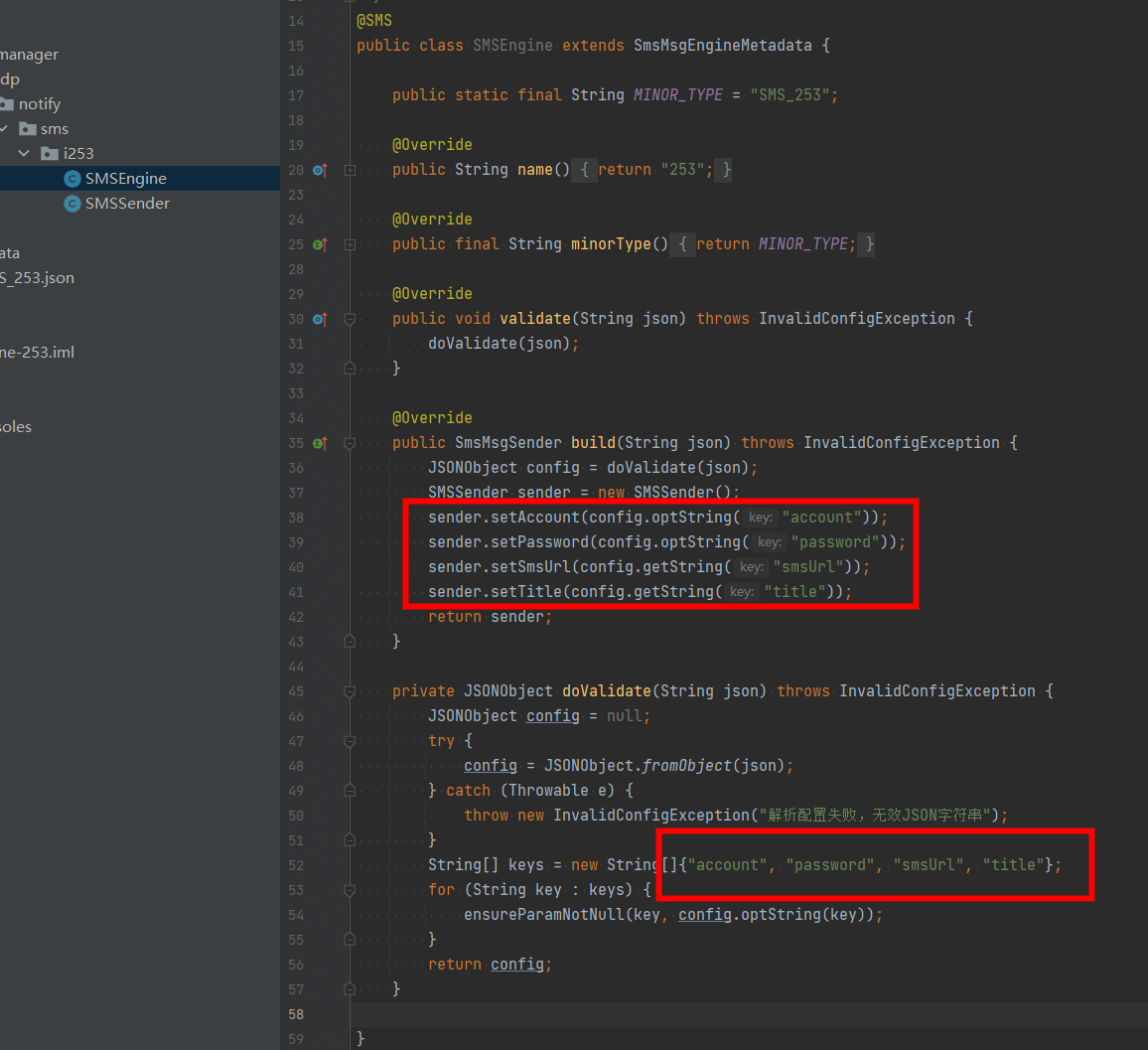

图7 修改 SMSEngine 类中对应校验方法和生成Sender方法中的字段名
2.4.5. 编写具体发送逻辑¶
根据 253 短信网关文档（https://zz.253.com/api_doc/guo-nei-duan-xin/dan-fa-qun-fa-jie-kou.html）可知：253 短信网关使用 http 接口发送信息，请求、响应值均为 json 格式。因此，我们只需要将 IDP 传递给 Notify 的短信接收者、短信内容，经过处理后通过 http 接口发送到 253 短信网关即可。
修改 SMSSender 类中 sendMessage 方法，该方法参数 message 的值为具体要发送的短信内容，如“尊敬的用户wceshi，您本次的验证码是：133554， 2分钟内有效。如非本人操作，请忽略本短信并联系管理员。”，根据 253 要求，需要在这个内容的最前面拼接上 title；参数 phoneNumbers 为短信接收手机号，该参数为数组类型，截止文档编写时，该参数均只会传递一个值，需要注意该手机号为带有国际区号的手机号，需要根据对接的短信网关决定是否删掉该区号，内容示例“86-18888888888”。短信发送成功，函数要求返回 ApiResult.SUCCESS，失败要求返回 ApiResult.FAILURE 或 new ApiResult(NotifyErrorCode.SEND_UNKNOWN_ERROR, “具体的失败原因”);
编写好的代码如下
package com.idsmanager.idp.notify.sms.i253;
import com.google.gson.Gson;
import com.idsmanager.idp.notify.commons.infrastructure.ApiResult;
import com.idsmanager.idp.notify.commons.infrastructure.dto.msg.RContentBasedMsgSendReq;
import com.idsmanager.idp.notify.commons.infrastructure.dto.msg.TemplateBasedMsgSendReq;
import com.idsmanager.idp.notify.sms.domain.SmsMsgTemplate;
import com.idsmanager.idp.notify.sms.i253.dto.SmsMsgRequestDto;
import com.idsmanager.idp.notify.sms.i253.dto.SmsMsgResponseDto;
import com.idsmanager.idp.notify.sms.infrastructure.SmsMsgSender;
import com.idsmanager.micro.commons.utils.httpclient.HttpClientExecutor;
import com.idsmanager.micro.commons.utils.httpclient.HttpClientPostExecutor;
import com.idsmanager.micro.commons.utils.httpclient.IDSHttpResponse;
import com.idsmanager.micro.commons.web.filter.RIDHolder;
import org.apache.http.entity.StringEntity;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.nio.charset.StandardCharsets;
/**
* 2021/3/8
*
* @author lanyu
*/
public class SMSSender extends SmsMsgSender {
private static final Logger LOG = LoggerFactory.getLogger(SMSSender.class);
private final Gson gson = new Gson();
private String smsUrl;
private String account;
private String password;
private String title;
public ApiResult sendMessage(String message, String... phoneNumbers) {
final String phoneNumber = phoneNumbers[0];
final String msg = this.title + message;
final SmsMsgRequestDto smsMsgRequestDto = new SmsMsgRequestDto();
smsMsgRequestDto.setPhone(phoneNumber);
smsMsgRequestDto.setMsg(msg);
smsMsgRequestDto.setAccount(this.account);
smsMsgRequestDto.setPassword(this.password);
final String requestBody = gson.toJson(smsMsgRequestDto);
HttpClientExecutor executor = new HttpClientPostExecutor(this.smsUrl);
executor.httpEntity(new StringEntity(requestBody, StandardCharsets.UTF_8));
final String responseBody;
try {
responseBody = executor.executeWithException(IDSHttpResponse::responseAsString);
} catch (Exception e) {
LOG.error("[" + RIDHolder.id() + "]- request [" + this.smsUrl + "] failed", e);
return ApiResult.FAILURE;
}
final SmsMsgResponseDto smsMsgResponseDto = gson.fromJson(responseBody, SmsMsgResponseDto.class);
if (smsMsgResponseDto == null || !"0".equals(smsMsgResponseDto.getCode())) {
LOG.info("[{}]- send sms failed [{}] [{}]", RIDHolder.id(), requestBody, responseBody);
return ApiResult.FAILURE;
}
return ApiResult.SUCCESS;
}
/**
* 根据模板发送消息 (暂时没有地方会用到)
*
* @param req
* @param content
* @param template
* @return
*/
@Override
public ApiResult sendMsgByTemplate(TemplateBasedMsgSendReq req, String content, SmsMsgTemplate template) {
return sendMessage(content, req.getReceiver().getRecipients());
}
/**
* 直接发送原生消息
*
* @param req example: {"subject":"","content":"尊敬的用户wceshi，您本次的验证码是：133554， 2分钟内有效。如非本人操作，请忽略本短信并联系管理员。","mimeType":"text","receiver":{"userUniqueId":"86-18888888888","userDisplayName":"86-18888888888","recipients":["86-18888888888"],"params":{"code":"133554","minutes":2,"username":"wceshi"}},"options":{"instanceId":"wceshi","businessId":"general_sms_code","externalId":"general_sms_code"},"defaultTenantId":"0000000000000000","systemId":"0000000000000000","tenantId":"c43bd59e4a03351d527cda65023dbca7wpnnBYyqcfd"}
* @return
*/
@Override
public ApiResult sendMsgByRContent(RContentBasedMsgSendReq req) {
return sendMessage(req.getContent(), req.getReceiver().getRecipients());
}
public void setSmsUrl(String smsUrl) {
this.smsUrl = smsUrl;
}
public void setAccount(String account) {
this.account = account;
}
public void setPassword(String password) {
this.password = password;
}
public void setTitle(String title) {
this.title = title;
}
}
/*
* Copyright (c) 2016 BeiJing JZYT Technology Co. Ltd
* www.idsmanager.com
* All rights reserved.
*
* This software is the confidential and proprietary information of
* BeiJing JZYT Technology Co. Ltd ("Confidential Information").
* You shall not disclose such Confidential Information and shall use
* it only in accordance with the terms of the license agreement you
* entered into with BeiJing JZYT Technology Co. Ltd.
*/
package com.idsmanager.idp.notify.sms.i253.dto;
import java.io.Serializable;
/**
* 2021/3/9
*
* @author ilanyu
*/
public class SmsMsgRequestDto implements Serializable {
private static final long serialVersionUID = -136360816850746394L;
private String account;
private String password;
private String msg;
private String phone;
public SmsMsgRequestDto() {
}
public String getAccount() {
return account;
}
public void setAccount(String account) {
this.account = account;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
public String getPhone() {
return phone;
}
public void setPhone(String phone) {
this.phone = phone;
}
@Override
public String toString() {
return "SmsMsgRequestDto{" +
"account='" + account + '\'' +
", password='" + password + '\'' +
", msg='" + msg + '\'' +
", phone='" + phone + '\'' +
'}';
}
}
/*
* Copyright (c) 2016 BeiJing JZYT Technology Co. Ltd
* www.idsmanager.com
* All rights reserved.
*
* This software is the confidential and proprietary information of
* BeiJing JZYT Technology Co. Ltd ("Confidential Information").
* You shall not disclose such Confidential Information and shall use
* it only in accordance with the terms of the license agreement you
* entered into with BeiJing JZYT Technology Co. Ltd.
*/
package com.idsmanager.idp.notify.sms.i253.dto;
import java.io.Serializable;
/**
* 2021/3/9
*
* @author ilanyu
*/
public class SmsMsgResponseDto implements Serializable {
private static final long serialVersionUID = 1609515899231267341L;
private String code;
private String msgId;
private String time;
private String errorMsg;
public SmsMsgResponseDto() {
}
public String getCode() {
return code;
}
public void setCode(String code) {
this.code = code;
}
public String getMsgId() {
return msgId;
}
public void setMsgId(String msgId) {
this.msgId = msgId;
}
public String getTime() {
return time;
}
public void setTime(String time) {
this.time = time;
}
public String getErrorMsg() {
return errorMsg;
}
public void setErrorMsg(String errorMsg) {
this.errorMsg = errorMsg;
}
@Override
public String toString() {
return "SmsMsgResponseDto{" +
"code='" + code + '\'' +
", msgId='" + msgId + '\'' +
", time='" + time + '\'' +
", errorMsg='" + errorMsg + '\'' +
'}';
}
}
由于 Notify 没有实现类隔离，需要注意在插件开发过程中如果需要引入新的 maven 依赖，请先检查引入的依赖是否在下列列表中，如果在列表中，请使用列表中的版本，并将 scope 修改为 provided。
antlr:antlr:2.7.7
ch.qos.logback:logback-classic:1.2.3
ch.qos.logback:logback-core:1.2.3
cn.jpush.api:jpush-client:3.2.9
com.alibaba:fastjson:1.2.68.noneautotype
com.aliyun:aliyun-java-sdk-core:4.0.6
com.beust:jcommander:1.48
com.fasterxml:classmate:1.3.0
com.fasterxml:classmate:1.3.4
com.fasterxml.jackson.core:jackson-annotations:2.9.0
com.fasterxml.jackson.core:jackson-annotations:2.9.8
com.fasterxml.jackson.core:jackson-core:2.9.6
com.fasterxml.jackson.core:jackson-databind:2.9.6
com.fasterxml.jackson.dataformat:jackson-dataformat-smile:2.6.5
com.fasterxml.jackson.datatype:jackson-datatype-jdk8:2.9.6
com.fasterxml.jackson.datatype:jackson-datatype-jsr310:2.9.6
com.fasterxml.jackson.module:jackson-module-afterburner:2.6.5
com.fasterxml.jackson.module:jackson-module-parameter-names:2.9.6
com.google.code.findbugs:jsr305:1.3.9
com.google.code.gson:gson:2.3
com.google.code.gson:gson:2.8.2
com.google.code.gson:gson:2.8.5
com.google.code.gson:gson:2.8.6
com.google.errorprone:error_prone_annotations:2.0.18
com.google.guava:guava:18.0
com.google.guava:guava:23.0
com.google.j2objc:j2objc-annotations:1.1
com.google.zxing:core:3.2.1
com.google.zxing:javase:3.2.1
com.idsmanager.boot:micro-commons:1.1.2
com.idsmanager.notify:notify-api:4.11.0
com.idsmanager.notify:notify-autoconfiguration:4.11.0
com.idsmanager.notify:notify-core:4.11.0
com.idsmanager.notify:notify-email-api:4.11.0
com.idsmanager.notify:notify-email-local:4.11.0
com.idsmanager.notify:notify-email-remote:4.11.0
com.idsmanager.notify:notify-email-web:4.11.0
com.idsmanager.notify:notify-mobile-api:4.11.0
com.idsmanager.notify:notify-mobile-engine-jpush:4.11.0
com.idsmanager.notify:notify-mobile-local:4.11.0
com.idsmanager.notify:notify-mobile-web:4.11.0
com.idsmanager.notify:notify-rocket-mq:4.11.0
com.idsmanager.notify:notify-sms-api:4.11.0
com.idsmanager.notify:notify-sms-engine-253:4.11.0
com.idsmanager.notify:notify-sms-engine-253-new:4.11.0
com.idsmanager.notify:notify-sms-engine-aliyun:4.11.0
com.idsmanager.notify:notify-sms-engine-cmcc:4.11.0
com.idsmanager.notify:notify-sms-engine-cmcc-ws:1.0
com.idsmanager.notify:notify-sms-engine-unicom:4.11.0
com.idsmanager.notify:notify-sms-local:4.11.0
com.idsmanager.notify:notify-sms-remote:4.11.0
com.idsmanager.notify:notify-sms-web:4.11.0
com.idsmanager.notify:notify-website-api:4.11.0
com.idsmanager.notify:notify-website-local:4.11.0
com.idsmanager.notify:notify-website-web:4.11.0
commons-beanutils:commons-beanutils:1.8.0
commons-beanutils:commons-beanutils:1.9.3
commons-codec:commons-codec:1.10
commons-codec:commons-codec:1.11
commons-collections:commons-collections:3.2.1
commons-collections:commons-collections:3.2.2
commons-discovery:commons-discovery:0.2
commons-io:commons-io:2.4
commons-lang:commons-lang:2.3
commons-lang:commons-lang:2.4
commons-lang:commons-lang:2.6
commons-logging:commons-logging:1.1.1
commons-logging:commons-logging:1.2
commons-net:commons-net:3.6
com.net.sxt:jxtWS:1.0
com.sun.xml.bind:jaxb-core:2.1.14
com.sun.xml.bind:jaxb-impl:2.1
com.zaxxer:HikariCP:2.7.9
dom4j:dom4j:1.6.1
net.sf.json-lib:json-lib:jar:jdk15:2.3
io.netty:netty-all:4.0.42.Final
io.netty:netty-all:4.1.29.Final
io.netty:netty-tcnative-boringssl-static:1.1.33.Fork26
io.springfox:springfox-core:2.7.0
io.springfox:springfox-schema:2.7.0
io.springfox:springfox-spi:2.7.0
io.springfox:springfox-spring-web:2.7.0
io.springfox:springfox-swagger2:2.7.0
io.springfox:springfox-swagger-common:2.7.0
io.springfox:springfox-swagger-ui:2.7.0
io.swagger:swagger-annotations:1.5.6
io.swagger:swagger-models:1.5.13
javax.activation:activation:1.1
javax.activation:activation:1.1.1
javax.activation:javax.activation-api:1.2.0
javax.annotation:javax.annotation-api:1.3.2
javax.mail:mail:1.4.1
javax.persistence:javax.persistence-api:2.2
javax.transaction:javax.transaction-api:1.2
javax.validation:validation-api:2.0.1.Final
javax.xml.bind:jaxb-api:2.1
javax.xml.bind:jaxb-api:2.3.0
javax.xml.stream:stax-api:1.0-2
mysql:mysql-connector-java:5.1.35
net.bytebuddy:byte-buddy:1.7.11
net.bytebuddy:byte-buddy:1.8.15
net.logstash.logback:logstash-logback-encoder:4.5.1
net.sf.ezmorph:ezmorph:1.0.6
org.apache.axis:axis:1.4
org.apache.axis:axis-jaxrpc:1.4
org.apache.axis:axis-saaj:1.4
org.apache.commons:commons-lang3:3.4
org.apache.commons:commons-lang3:3.7
org.apache.httpcomponents:httpclient:4.5.5
org.apache.httpcomponents:httpclient:4.5.6
org.apache.httpcomponents:httpcore:4.4.10
org.apache.httpcomponents:httpcore:4.4.12
org.apache.rocketmq:rocketmq-client:4.4.0
org.apache.rocketmq:rocketmq-common:4.4.0
org.apache.rocketmq:rocketmq-logging:4.4.0
org.apache.rocketmq:rocketmq-remoting:4.4.0
org.apache.tomcat.embed:tomcat-embed-core:8.5.34
org.apache.tomcat.embed:tomcat-embed-el:8.5.34
org.apache.tomcat.embed:tomcat-embed-websocket:8.5.34
org.aspectj:aspectjrt:1.8.13
org.aspectj:aspectjweaver:1.8.13
org.bouncycastle:bcmail-jdk15:1.46
org.bouncycastle:bcprov-jdk15:1.46
org.codehaus.groovy:groovy-all:2.4.15
org.codehaus.groovy:groovy-all:2.4.6
org.codehaus.mojo:animal-sniffer-annotations:1.14
org.hibernate.common:hibernate-commons-annotations:5.0.1.Final
org.hibernate.common:hibernate-commons-annotations:5.0.4.Final
org.hibernate:hibernate-core:5.2.17.Final
org.hibernate:hibernate-core:5.3.4.Final
org.hibernate.javax.persistence:hibernate-jpa-2.1-api:1.0.0.Final
org.hibernate.javax.persistence:hibernate-jpa-2.1-api:1.0.2.Final
org.hibernate.validator:hibernate-validator:6.0.12.Final
org.javassist:javassist:3.22.0-GA
org.javassist:javassist:3.23.1-GA
org.jboss:jandex:2.0.3.Final
org.jboss:jandex:2.0.5.Final
org.jboss.logging:jboss-logging:3.3.1.Final
org.jboss.logging:jboss-logging:3.3.2.Final
org.jboss.spec.javax.transaction:jboss-transaction-api_1.2_spec:1.0.1.Final
org.jboss.spec.javax.transaction:jboss-transaction-api_1.2_spec:1.1.1.Final
org.mapstruct:mapstruct:1.1.0.Final
org.reflections:reflections:0.9.11
org.slf4j:jul-to-slf4j:1.7.25
org.slf4j:slf4j-api:1.7.25
org.slf4j:slf4j-api:1.7.7
org.springframework.boot:spring-boot:2.0.5.RELEASE
org.springframework.boot:spring-boot-autoconfigure:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-aop:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-data-jpa:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-jdbc:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-json:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-logging:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-tomcat:2.0.5.RELEASE
org.springframework.boot:spring-boot-starter-web:2.0.5.RELEASE
org.springframework.data:spring-data-commons:2.0.10.RELEASE
org.springframework.data:spring-data-jpa:2.0.10.RELEASE
org.springframework.plugin:spring-plugin-core:1.2.0.RELEASE
org.springframework.plugin:spring-plugin-metadata:1.2.0.RELEASE
org.springframework.security:spring-security-core:5.0.8.RELEASE
org.springframework.security:spring-security-core:5.0.9.RELEASE
org.springframework:spring-aop:5.0.9.RELEASE
org.springframework:spring-aspects:5.0.9.RELEASE
org.springframework:spring-beans:5.0.9.RELEASE
org.springframework:spring-context:5.0.9.RELEASE
org.springframework:spring-core:5.0.9.RELEASE
org.springframework:spring-expression:5.0.9.RELEASE
org.springframework:spring-jcl:5.0.9.RELEASE
org.springframework:spring-jdbc:5.0.9.RELEASE
org.springframework:spring-orm:5.0.9.RELEASE
org.springframework:spring-tx:5.0.9.RELEASE
org.springframework:spring-web:5.0.9.RELEASE
org.springframework:spring-webmvc:5.0.9.RELEASE
wsdl4j:wsdl4j:1.6.3
2.5. 打包用户目录UD¶
2.6. 运行调试¶
1、若有 Notify 源码
先 install 开发的插件，再在 notify-application 模块的 pom.xml 中引入该插件，即可运行或调试。
2、若无 Notify 源码
需要先有一套完整的 Notify 运行环境，文件列表如图所示。

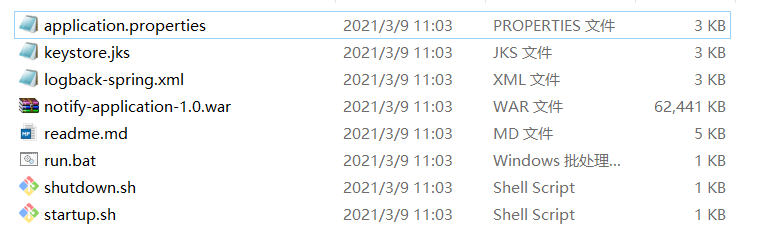

图8 Notify 运行环境
修改 application.properties 中 spring.datasource.url、spring.datasource.username、spring.datasource.password 为正确的 jdbc 连接信息、MySQL 用户名、MySQL 密码，创建好 idp4_testV1_2 数据库。
修改 startup.sh 中 JAVA_HOME 为正确的地址。
将打包好的插件的 jar 包，以及用到的依赖包的 jar 包，压缩到 notify-application-1.0.war 中的 WEB-INF/lib 目录中，压缩时注意压缩算法需要使用仅存储。
在 Linux 环境中给 startup.sh 增加可执行权限后使用 ./startup.sh 即可运行。
或在 Windows 环境中直接双击 run.bat 即可运行。
若需要调试，则需要在 IDEA 运行配置中添加远程 JVM 调试配置，主机设置为运行 Notify 的服务器IP，如 11.164.60.12，端口设置为一个可以通过防火墙的，没有其他程序使用的端口，如 5005。复制给出的远程 JVM 命令行参数，将其添加到 startup.sh 或 run.bat 的 Java 参数中，启动Notify后，再在IDEA中进行远程 Debug 即可进行调试。

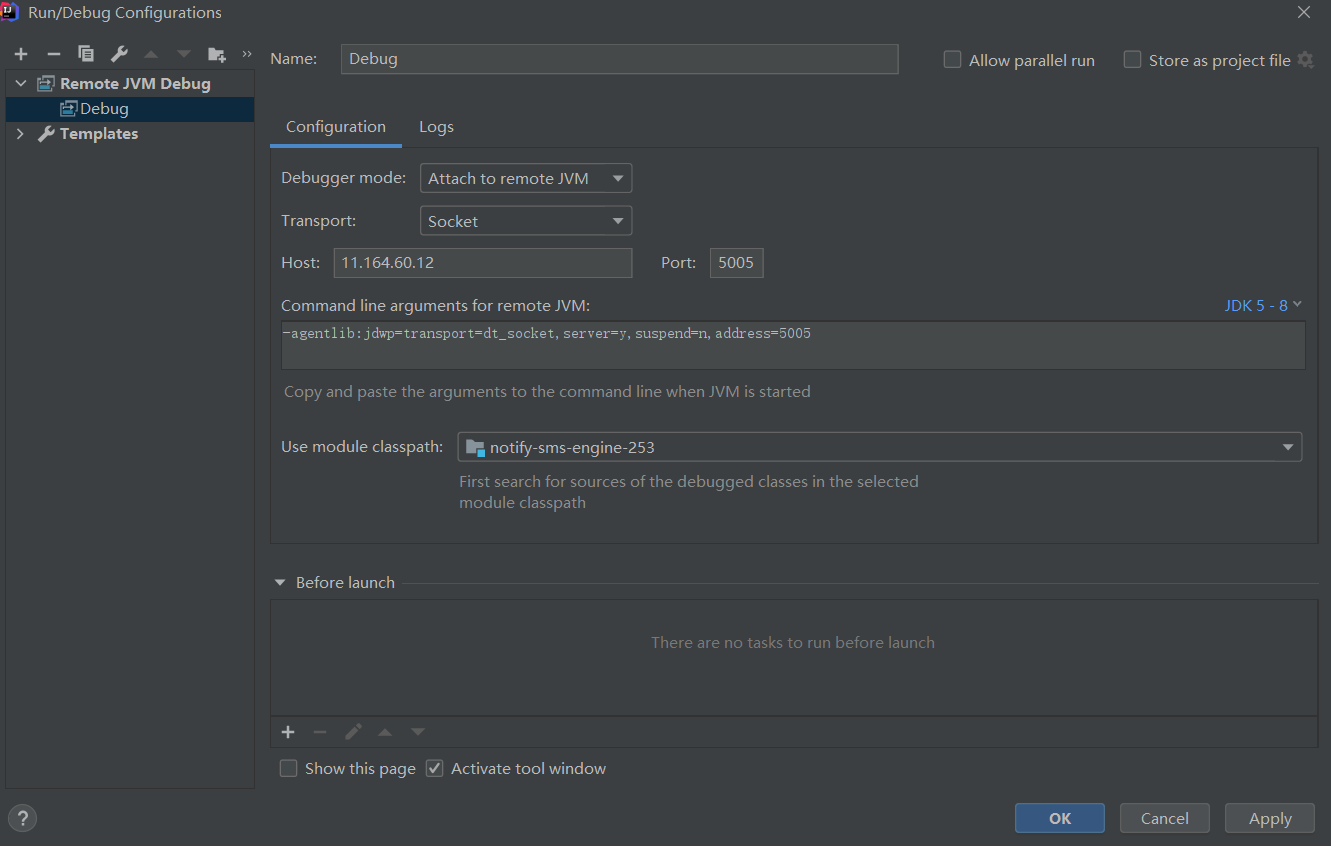

图9 添加远程 JVM 调试
图10 使用远程 JVM 调试
在开发过程中，若反复压缩 notify-application-1.0.war 不方便，可将 notify-application-1.0.war 解压，然后将打包的插件放到解压后的目录中的 WEB-INF/lib 目录中，然后使用命令 java -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5005 -Xms512m -Xmx1024m -DServer.name=NotifyServer org.springframework.boot.loader.WarLauncher –spring.config.location=application.properties -server 启动，同样可以进行远程调试。若在 Notify 启动时就需要断点进行调试，可将 agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5005 中的 suspend=n 修改为 suspend=y，即可在启动时等待 IDEA 进行远程调试，开启调试后，再继续运行。
3. 前端JSON示例¶
可直接格式复制去使用，注意使用时修改key为具有含义的值，name、placeholder、description、options 等为能让用户看明白的值。
3.1. 单行输入框¶
{
"key": "name",
"name": { "zh": "名称", "en": "Name" },
"type": "input",
"readonly": false,
"disabled": false,
"placeholder": { "zh": "请填写名称", "en": "Please enter the Name" },
"description": { "zh": "名称", "en": "Source name" },
"rules": { "required": true, "message": "此项不能为空", "trigger": "blur" },
"maxlength":255,
"show": true,
"send": true
}
3.2. 多行文本框¶
{
"key": "description",
"name": { "zh": "描述", "en": "Description" },
"type": "textarea",
"disabled": false,
"readonly": false,
"placeholder": { "zh": "请输入描述", "en": "Please enter the Description" },
"description": { "zh": "", "en": "" },
"rules": { "required": false, "message": "此项不能为空", "trigger": "blur" },
"maxlength":255,
"show": true,
"send": true
}
3.3. 下拉选项框¶
{
"key": "name",
"name": { "zh": "名称", "en": "Name" },
"type": "select",
"options": [
{ "label": "Name1", "value": { "zh": "名称1", "en": "name 1" }, "disabled": false },
{ "label": "Name2", "value": { "zh": "名称2", "en": "name 2" }, "disabled": false }
],
"disabled": false,
"placeholder": { "zh": "", "en": "" },
"description": { "zh": "名称的描述", "en": "name description" },
"rules": { "required": false, "message": "此项不能为空", "trigger": "change" },
"show": true,
"send": true
}
3.4. 单选按钮框¶
{
"key": "log",
"name": { "zh": "是否记录日志", "en": "record log" },
"type": "radio",
"options": [
{ "label": "true", "value": { "zh": "是", "en": "Yes" }, "disabled": false },
{ "label": "false", "value": { "zh": "否", "en": "No" }, "disabled": false }
],
"description": { "zh": "是否记录日志", "en": "Choose whether to record log." },
"rules": { "required": false, "message": "此项不能为空", "trigger": "change" },
"show": true,
"send": true,
}
3.5. 复选按钮框¶
{
"key": "names",
"name": { "zh": "名称", "en": "name" },
"type": "checkbox",
"options": [
{ "label": "name1", "value": { "zh": "名称1", "en": "name 1" }, "disabled": false },
{ "label": "name1", "value": { "zh": "名称2", "en": "name 2" }, "disabled": false }
],
"description": { "zh": "名称的描述" },
"rules": { "required": true, "message": "此项不能为空", "trigger": "change", "type": "array" },
"show": true,
"send": true
}
